G4500 BLACKBOX 3-Phase Power Quality Analyzer

Purchase Price: Quote Only
Availability: 2 to 3 Weeks
Rental: Yes
Availability: Enquire for Availibility

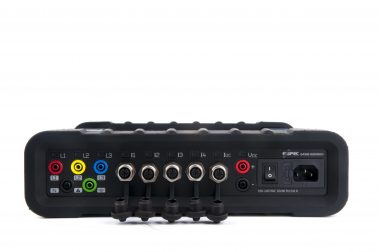

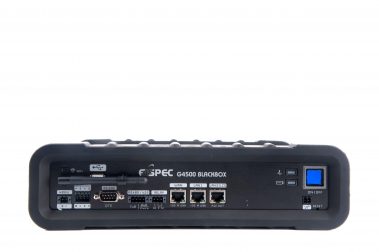

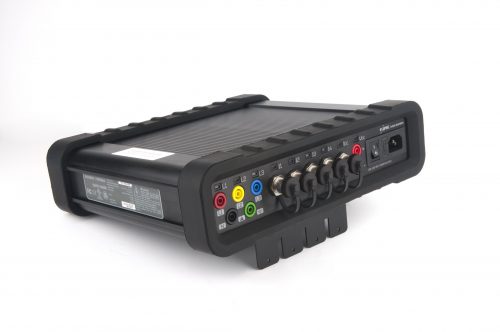

BlackBox G4500

The BlackBox G4500 portable takes power quality analyzers & power monitoring to the next level by utilising the revolutionary PQZIP patent algorithm. The unique algorithm enables you to measure, store & analyze (continuously) waveform signals regardless of their size.

PQZIP inside

  • Continuous waveform recording
  • Trigger free setup
  • 5,000 power parameters @ 1/2 cycle resolution
  • Easy deployment

Superior Accuracy

Pioneering measurement method utilizes a dual-range gain of 2 x 16 Bit to yield, a superior accuracy far surpassing IEC 61000-4-30 Class A requirements,thereby capturing the finest details & deviations in Power Quality parameters.

Class A

Far surpassing the highest standards set by the industry, the BLACKBOX device series complies with standards for: aggregations, time clock uncertainty, flagging, and transient influence quantities.

Synched Monitoring

A unique time synchronisation algorithm assures that logged data from multiple units is synchronised & displayed on the same time scale with typical 0.1 ms resolution. Every event on a grid is accurately analyzed for precise root cause analysis, behavior propagation, and traced to its source.


Utilities (Transmission, Distribution, Generation)


  • Optimizes protective equipment configuration and substation automation solutions
  • Ensures a reliable and consistent supply of energy
  • Evaluates the performance of breakers and relays
  • Identifies and manage peak demand
  • Real time power quality monitoring to meet any international standard
  • Produces detailed & comprehensive statistical records

Energy Consumer (Critical Power, Industrial, Commercial, etc.)


  • Measures and analyzes system efficiency, provides solutions and increases profits
  • Negotiates capabilities with power providers
  • Detects electric bill inconsistencies
  • Avoids power quality compliance issues
  • Monitors and analyses power quality in real time

Continuous Waveform Recordings

The G4500 portable power quality analyzer is able to record and store all electrical waveform continuously for more than a year, with no gaps in the data. The G4500 portable power quality analyzer offers a clear and comprehensive picture of the conditions before, during, and after an event.

Compliance & Custom Reporting

The G4500 in conjunction with PQSCADA Sapphire software offers a comprehensive reporting and compliance engine which is able to produce and schedule compliance reports in (printable in .pdf format) to multiple electrical standard’s including IEEE519 2014, IEEE519 2022, EN50160. It also allows for the design of custom report templates meeting the users specific and individual reporting requirements. Reports can be generated manually or on a daily, weekly, monthly or yearly schedule. Reports can also be triggered by compliance policy violation or by event occurrence.

Report Sample

Forensic Power Quality Analysis

Thanks to the G4500’s patented PQZIP technology and Cycle by Cycle recording, In-depth and forensic analysis of power quality incidents and issues are simple and intuitive using the PQSCADA Sapphire software. Quickly investigate the causation of events, trips, outages and component failures by comparing power trend charts from the available 5000 power parameters to a single measurement point and time simultaneously. Drill in at up to 1/2 Cycle resolution allowing for precise and accurate fault finding and diagnosis.

Trend Samples

Harmonics & Inter-Harmonics Analysis

The G4500 portable power quality analyzer has two FFT engines for harmonics analysis: Cycle by Cycle: performs FFT at 1 cycle resolution for extended bandwidth. This engine provides 512 harmonics order at 50Hz resolution. 10/12 Cycles: performs FFT 10/12 cycles resolution for extended resolution and sub-grouping calculation. This engine provides the magnitude and angle of 512 spectrum components at 5Hz resolution.

Comprehensive Event Mechanism

The G4500 portable power quality meter is designed to detect any event occurring on your system. The mechanism allows you to configure events on any measured parameter (more than 1,000) and/or I/O ports. The event mechanism supports out-of-limit events as well as rate of changed limits. The G4500 analyzer is capable of recording waveform signals continuously. The event configuration doesn’t trigger the recording but rather stores summary logs including start and end time, duration, severity and magnitude of the event. All events can be displayed in a tabular or scatter charts as CBEME/ITIC.

G4500 Specifications:

Waveform Sampling

Voltage Sampling Rate 1024 Samples/Cycle
Current Sampling Rate 256 Samples/Cycle
Voltage Harmonics (Individual, Even, Odd, Total) Up to – 511Th
Current Harmonics (Individual, Even, Odd, Total) Up to – 127Th
Type of Analog to Digital Converter 16/201 bit

Storage Capacity

Internal Memory 32 GB/32TB2

Power Quality Analysis

transient Detection, Microseconds (50Hz/60Hz) 19.5/16.3μs

Communication Ports

Ethernet Ports 3
Wi-Fi Communications (802.11g) 1
Power Over Ethernet (PoE- Out) 1
Digital Input 4
RS-232 1
RS-485 1


Dimensions mm 314 X 84 X 271
Weight 3.7kg


Comprehensive web server for local and remote real-time monitoring and control

Applicable Standards

Measurement Standards EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A
EMC Standards EN61326, CFR47FCC, CISPR11 Group 1, FCC PART 15 Subpart B,
EN61010-2, IEC61000-3-3, IEC61000-4-2, IEC61000-4-3,
IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
Environmental Standards IEC60068-2-1, 2, 6, 27, 30, 75
Safety Standards  EN61010-1:2001 2nd Edition

Power Supply

Operating Range 100-260 VAC: 50/60 Hz 100-300 VDC
Auxiliary DC Supply 48 VDC
Auxiliary Supply PoE In According to 802.3af
Battery Backup 2 Hours

Environmental Conditions

Operation Temperature 0°C – 50°C (32°F – 122 °F)
Storage Temperature -20°C – 60°C (-4°F – 140 °F)

Time Synchronization

Real Time Clock ±1 Second per 24 Hours
GPS 100-200μs
IRIG B 100-200μs
SNTP Server 50-100μs
DCF-77 ±15ms

Voltage Channels

Voltage Channels 4 (3 Phases + Neut.)+ 1 DC
Nominal Full Scale 1000V
Maximum Peak Measurement 8000V
Input Impedance 3MΩ
Uncertainty 0.1% of Nominal

Current Channels

Current Channels 4 (3 Phases + Neut.)+ 1Grn/DC
Current Channels Receive From Clamp I1-I4: 0-10 VPk I5: 0-3 VPk
Uncertainty 0.1% ±0.1 mV

Frequency Measurement

Fundamental Frequency 42.5 Hz to 69 Hz
Frequency Resolution 10 mHz
Frequency Accuracy ±10 mHz

What’s included with the Elspec G4500

  • Power Quality Analyzer
  • Mobile Analysis Lab

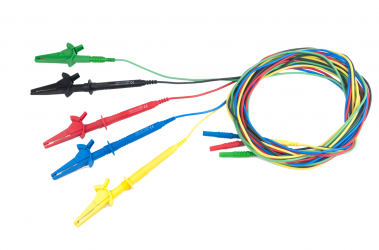

  • 5 x AC Voltage Test Leads & Clips
  • 2 x DC Voltage Test Leads & Clips

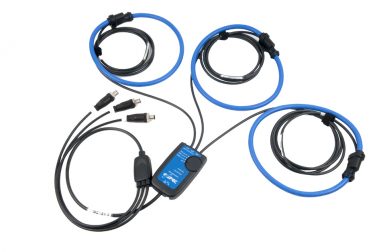

  • Custom Clamp 3-Flexible Current Probes
  • Custom Clamp 1-Flexible Current Probe
  • Power Cable for Cont. 10 A/125 V
  • 48 V DC Terminal Block Conector (ENT-1002-0190)
  • Temperature Sensor Terminal Block Connector PT100
  • Communication Terminal B, Black Connector
  • Multi IO Terminal Block Connector
  • Relay Terminal Block Connector
  • LAN Communication Cord Length – 2M
  • Relay Terminal Block Connector
  • Carrying Trolley Case
  • Installation & Demonstration Disc

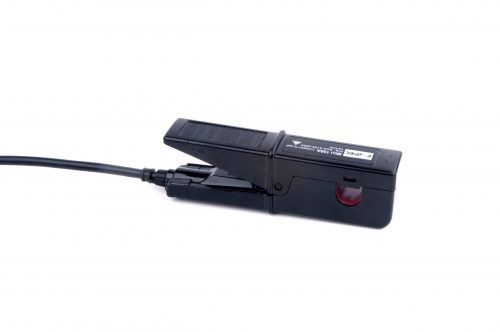

Ordering Information SOA-0010-0500
Measurement Range 6/60AAC
Output Signal 100m V/A
Operating Temperature – 20°C to + 60°C
Cable Length 1.2m


Ordering Information SOA-0270-1400
Measurement Range 1,500A DC / 1,000A AC
Output Signal 1m V/A, 10m V/A
Operating Temperature – 10°C to + 55°C
Cable Length 1.4m


Ordering Information SOA-0180-5000
“Hole” Dimensions 10mm Max
Measurement Range Up to 100APK AC
Output Signal 100m V/A
Operating Temperature – 20°C to + 60°C
Cable Length 1.2m


Ordering Information SOA-3003-0270
Measurement Range 30A/300A/3000A AC RMS
Operating Temperature – 20°C to + 65°C
Probe Cable Length 610mm (24”)
Probe Cable Diameter 194mm (7.5”)

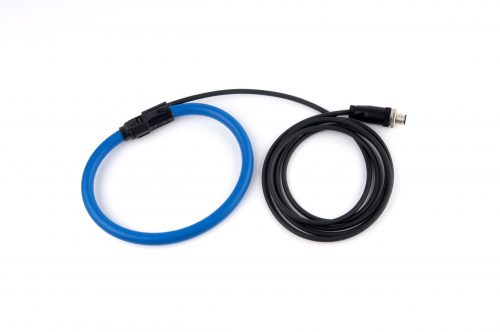

Ordering Information SOA-9045-3001
Measurement Range 90A – 4,200A
Operating Temperature – 20°C to + 60°C
Cable Length 2m
Loop Diameter 80cm


Ordering Information SOA-9091-3000
Measurement Range 9A – 1,050A
Operating Temperature – 20°C to + 60°C
Cable Length 2m
Loop Diameter 45cm

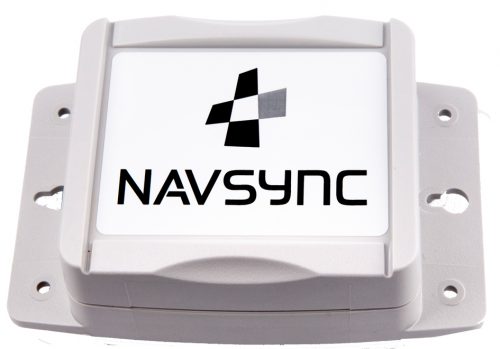

The GPS provides an optimal mobile time synchronization solution for accurate time data via satellite signal. In absence of any other available technologies, it synchronizes the time at any remote location.


Spring loaded press pin of cooper, which can grasp the conductor of max 4mm thickness
Compatible with all 4mm banana plug leads
Sheathed 4mm receptacle accepts shrouded banana plugs and unshrouded banana plugs


Heavy Duty Bus Bar Clip Set of red and black connectors have a flat, right angle design for connecting to bus bars. The adjustable collar provides two ranges of jaw openings up to 30 mm. They are CAT III 1KV, 10 A . The over-molded surfaces and finger-hugging curves give the user a comfortable, reliable grip and improves steadiness in slippery hands.
