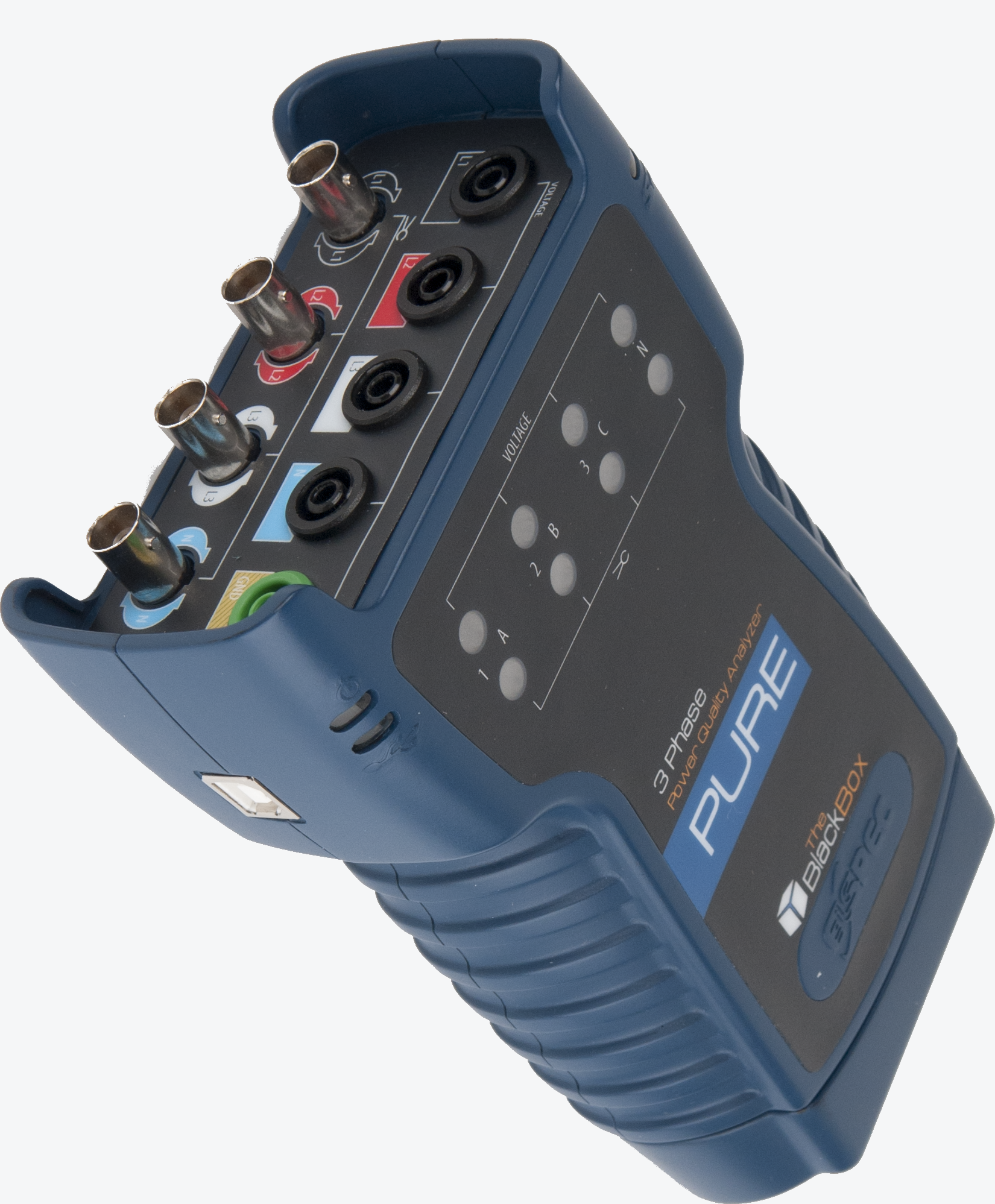

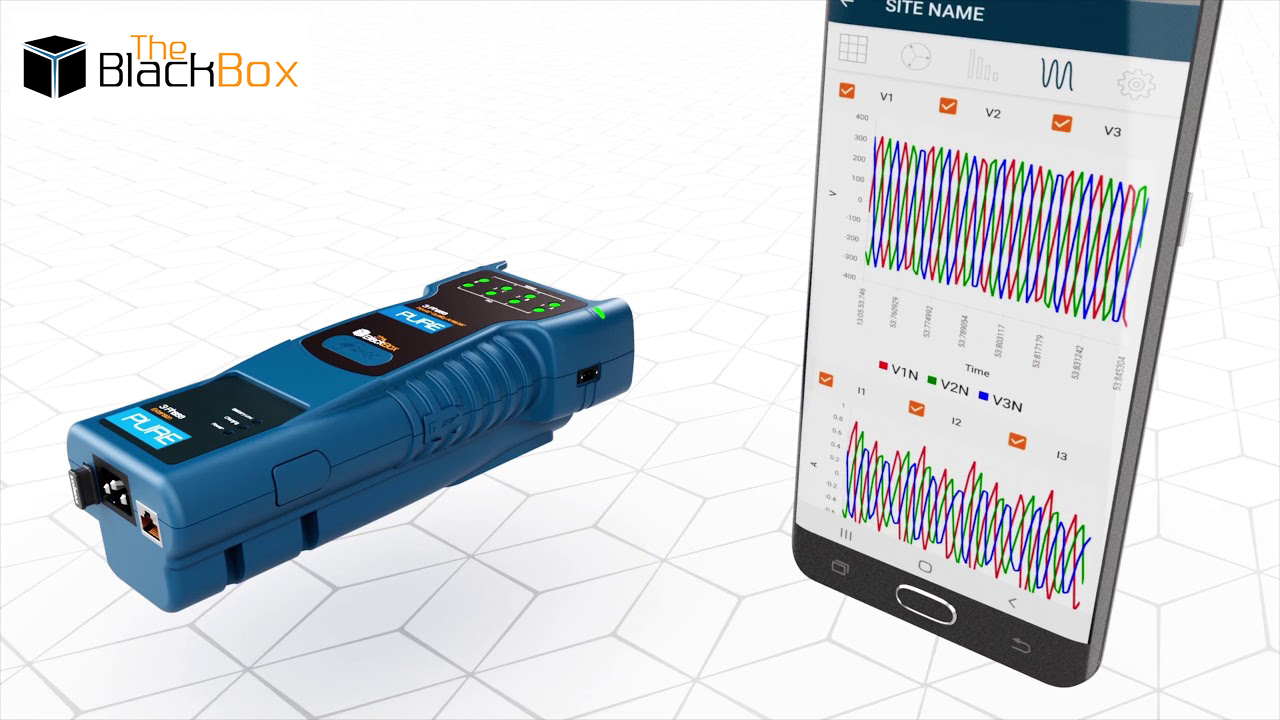

PURE BlackBox

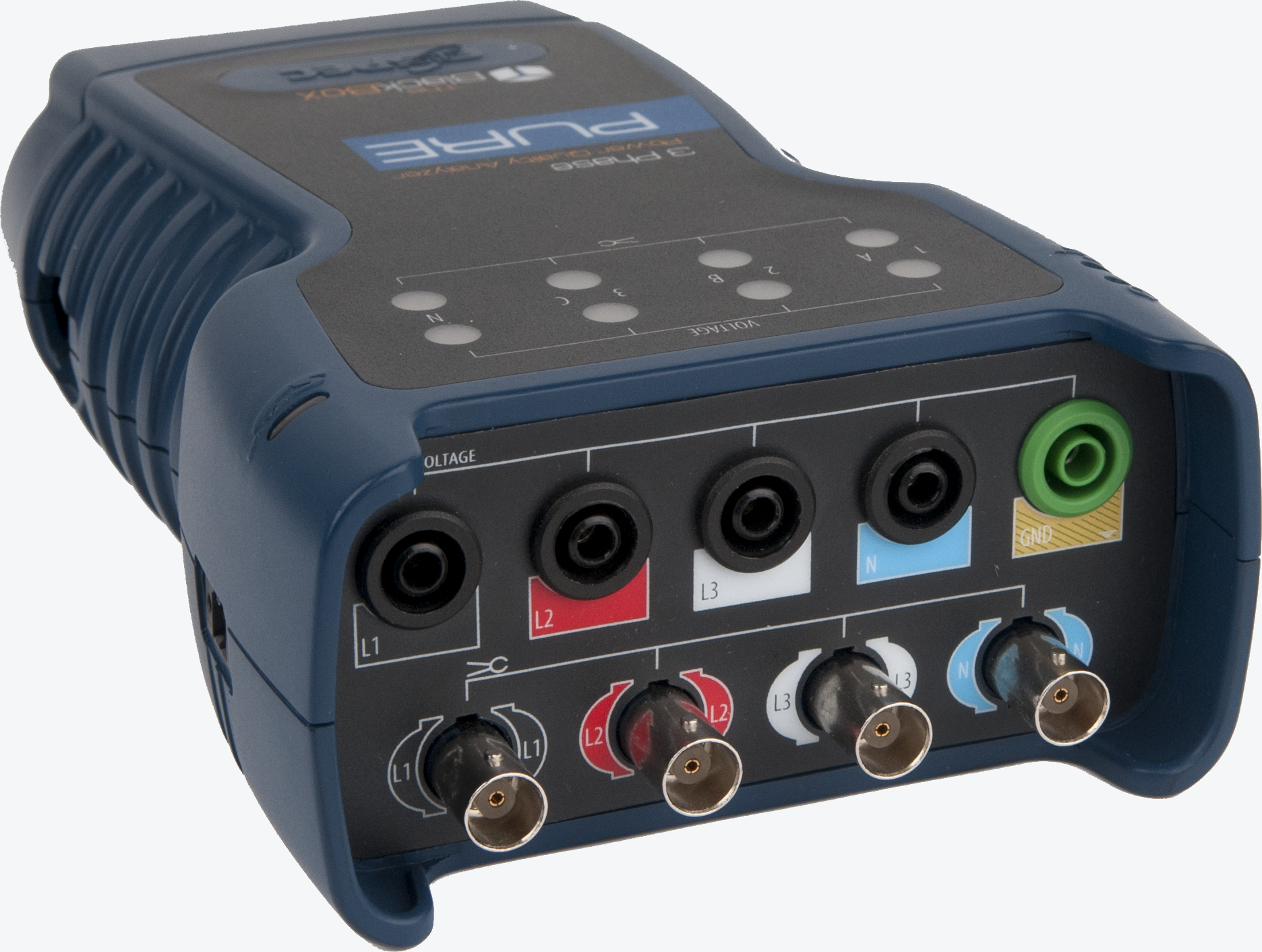

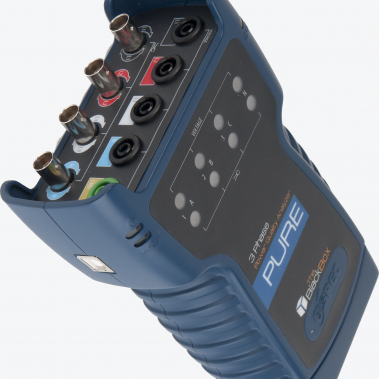

The Pure BlackBox, an advanced handheld power quality analyzer equipped with PQZIP Technology, is an easy to use plug and play device that continuously records all power quality parameters without thresholds settings or recording configuration. The device is available in 2 versions: Single Phase, 3-Phase.
Features
Continuous waveform recording
Class A devices IEC61000-4-30
Configuration FREE Device
SD card slot hot swap
Fast USB connectivity to PC
Plug & Play
Continuous Waveform Recordings
The Pure BlackBox continuously records voltage and current waveform sampled at a rate of 256 Sample/Cycle at 50/60Hz . Which provides information at a very high resolution, enabling to detect and analyze the slightest change without the need to set up triggers or thresholds.
Compliance & Custom Reporting
The PURE BlackBox in conjunction with PQSCADA Sapphire software offers a comprehensive reporting and compliance engine which is able to produce and schedule compliance reports in (printable in .pdf format) to multiple electrical standard’s including IEEE519 2014, IEEE519 2022, EN50160. It also allows for the design of custom report templates meeting the users specific and individual reporting requirements. Reports can be generated manually or on a daily, weekly, monthly or yearly schedule. Reports can also be triggered by compliance policy violation or by event occurrence.
Report Sample
Supreme Trends Resolution
More than 5,000 power quality parameters such as RMS, THD, powers, power factor, unbalance and harmonics are logged continuously for more than a year at half cycle, 10/12 Cycles, 150/180 Cycles, and 2 hours resolution.
Extended Harmonics Recording
The Pure BlackBox records and stores 128 harmonics components at 50Hz resolution and 512 inter-harmonics components at 5Hz resolution for both voltage and current.
Comprehensive Event Mechanism
The Pure BlackBox is designed to detect any event occurring on your system. The Pure BlackBox analyzer is capable of recording waveform signals continuously. The event configuration doesn’t trigger the recording but rather stores summary logs including start and end time, duration, severity and magnitude of the event. All events can be displayed in a tabular or scatter charts as CBEME/ITIC.
Device Specifications
| Product Series | 3- Phase | Single Phase |
|---|---|---|
| General | ||
|

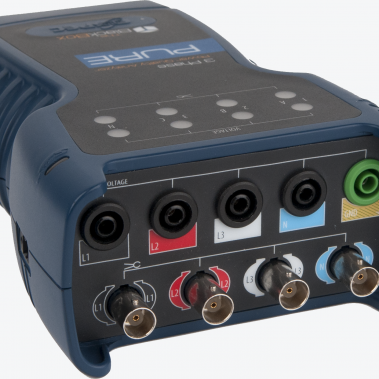

Voltage input |
4 channels, 100-690VAC Nominal Measuring up to 1.5 kV RMS |
2 channels, phase and neutral through
power socket 100/240V AC Nominal Measuring up to 0.5kV RMS |
|
Current Channels
|
4 channels Voltage output CTs (0-10V peak)
|
1 channel, between source and load up to 10A Peak
|
|
Line Frequency
|
40-70Hz
|
40-70Hz
|
|
Sampling Rate
|
46,080Hz
|
46,080Hz
|
|
LED Indicators |
11 Bi-color LED: Voltage clips status – 4
Current clamps status – 4 SD card status – 1 PQZ Recording status – 1 General status – 1 |
3 Bi-colors LED SD card status – 1
PQZ Recording status – 1 General status – 1 |
|
Accuracy
|
IEC 61000-4-30 Class A
|
IEC 61000-4-30 Class A
|
| Communication | ||
|
LAN
|
Available in extension module
|
N/A
|
|
USB |
PQZ file download, FW upgrade & clock setting
|
PQZ file download, FW upgrade & clock setting
|
| Power | ||
|
Power Supply |
100-240V AC 50/60Hz 10W 140-300V DC
5V DC over USB |
100-240V AC 50/60Hz 10W
5V DC over USB |
|
Ride Through
|
30 sec
|
30 sec
|
|
Battery
|
5h with extension module
|
N/A
|
| Mechanical | ||
|
Weight
|
0.4kg
|
0.25kg
|
|
Dimensions
|
180x115x60
|
146x82x48
|
| Synchronization | ||
|
External synchronization
|
NTP available in extension module
|
N/A
|
|
Internal Synchronization
|
10ppm
|
10ppm
|
| Environmental | ||
|
Operating Temperature
|
-20°C to +70°C
|
-20°C to +70°C*
|
|
Humidity
|
5% to 95% non-condensing
|
5% to 95% non-condensing
|
|
IP Protection
|
IP40
|
IP40
|
| Storage | ||
|
Nonvolatile Memory
|
SD Card supporting hot swap**
|
|
| (*) T>60°C requires an external power supply (**) see SD card specifications in user manual Disclamer: Specifications subject to changes without prior notice |
||
PURE BlackBox Package Includes
- Elspec Pure BlackBox PQA.
- Customized input terminal cards according to country specific requirements.

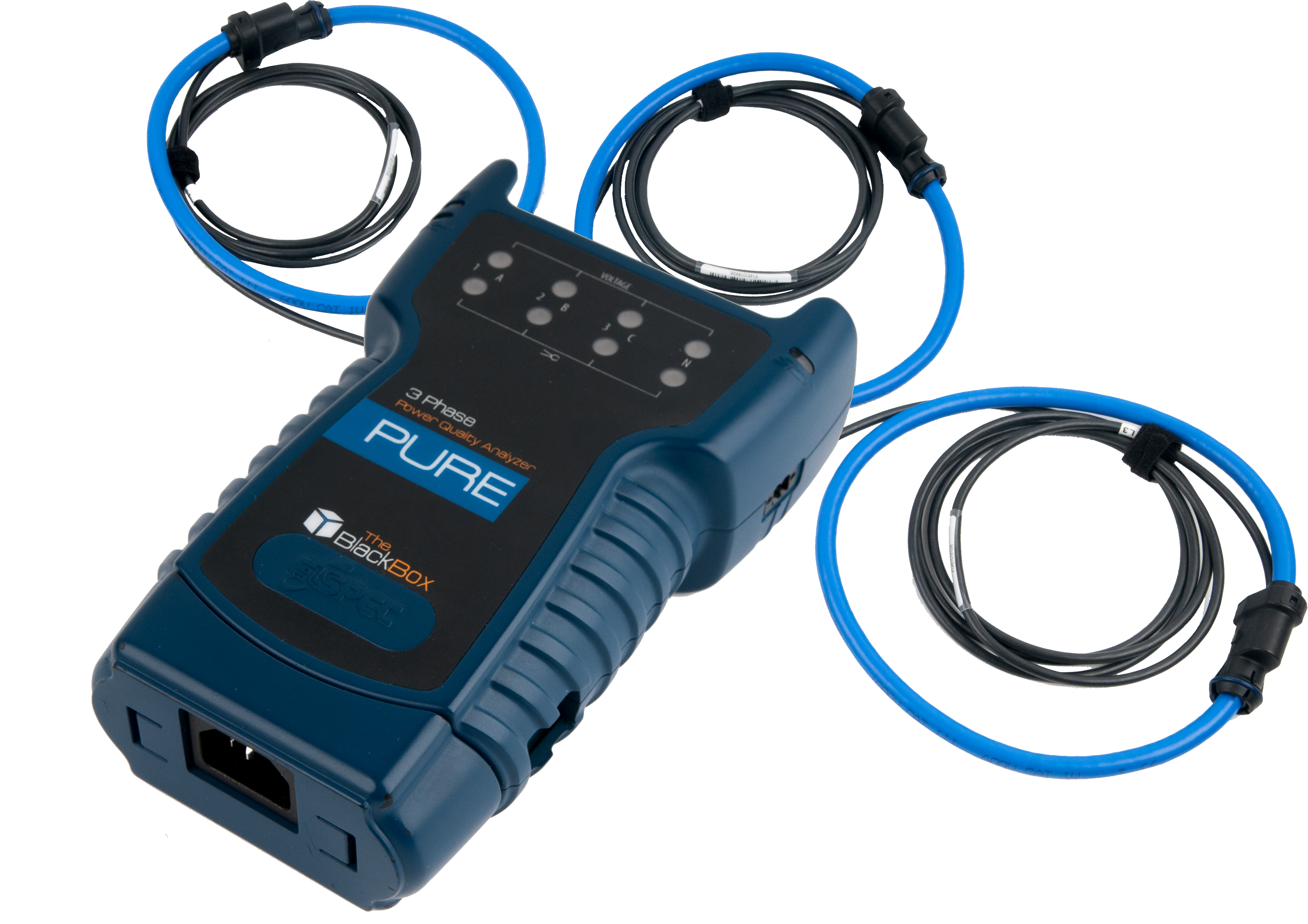

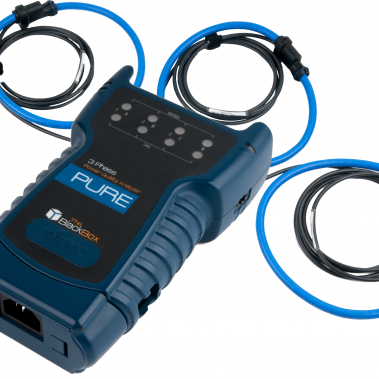

- Custom Clamp 1 x 3-Phase Flexible Current Probes 0…30A, 300A & 3000A AC RMS.
- Custom Clamp 1 x Single Phase Flexible Current Probe 0…30A, 300A & 3000A AC RMS.

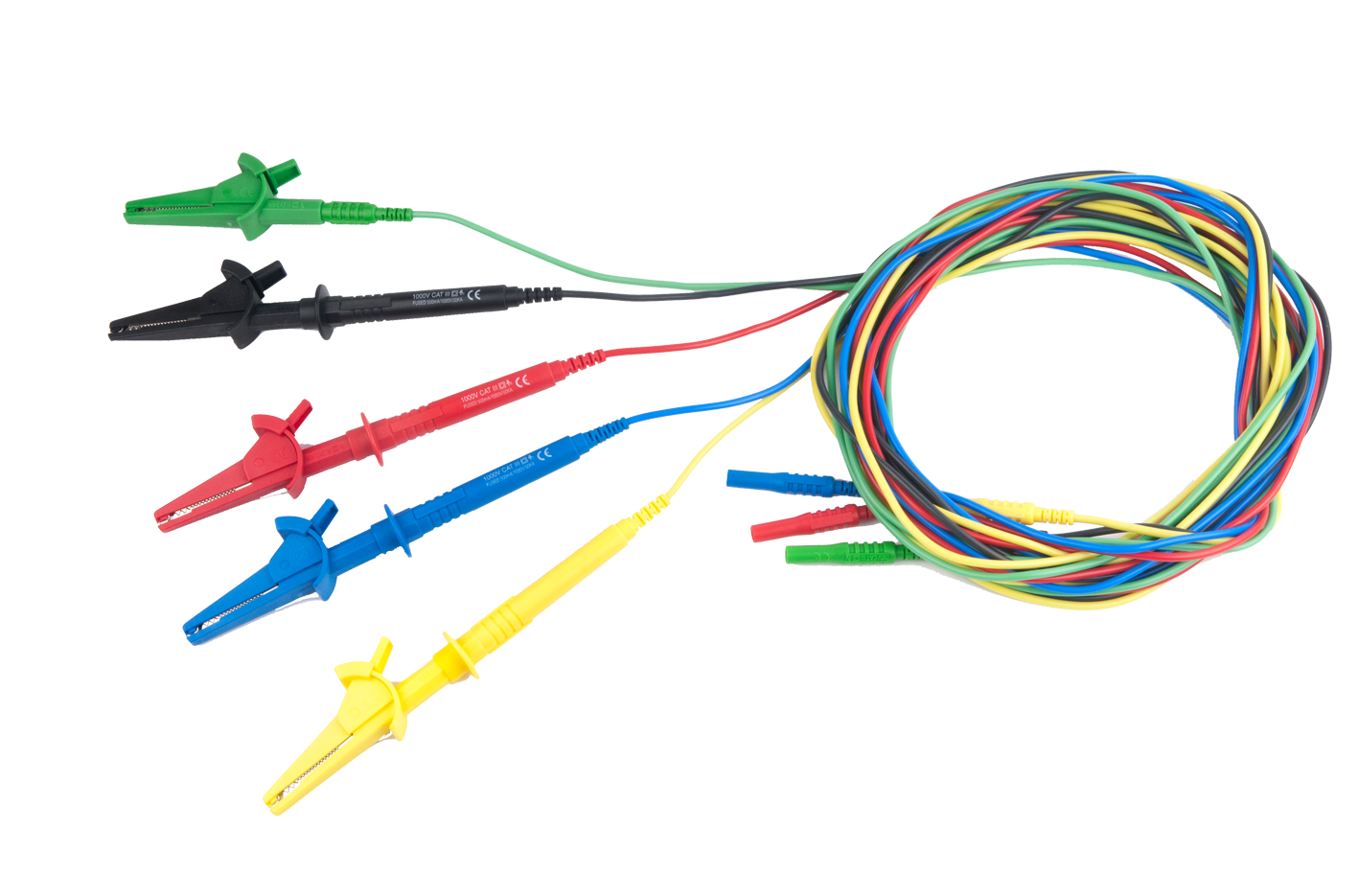

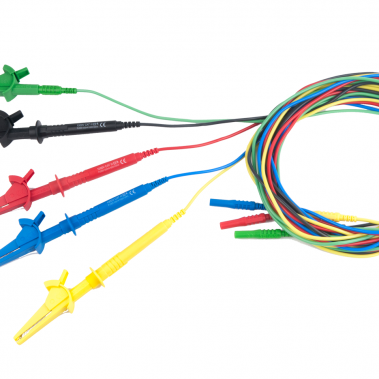

- AC Fused Lead set complete with croc-clips (5 leads – 3m long).
- USB Cable type A male to type B male 1.5m black.
- Power Cable.
- 4GB Micro SD card (inserted into the Pure BlackBox).
- Elspec BlackBox Installation on USB drive.
- 2 Pin Terminal Block Connector.
- Full Manufacturers Calibration Certificate

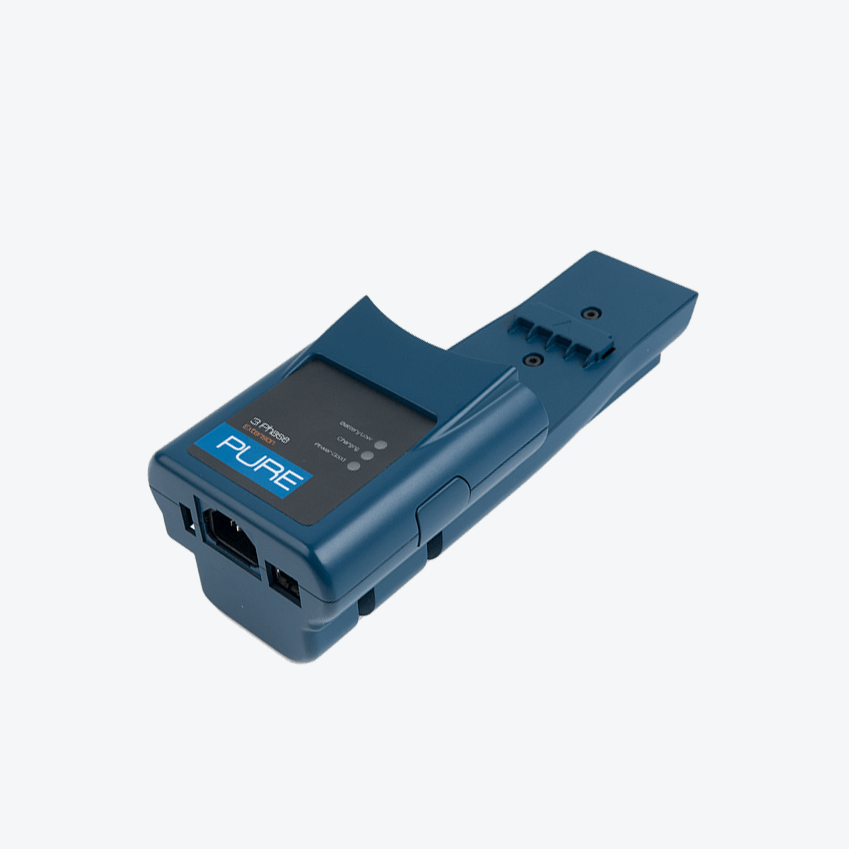

EXTENSION MODULE
| AC power supply |
| LAN port (RJ45) |
| USB – data & DC power supply or wireless communication WiFi/ 3G dongle |
| Battery power/backup source of up to 4 hours |
PROTECTIVE CASE
Protects the device from scratches and shocks. Available for both models

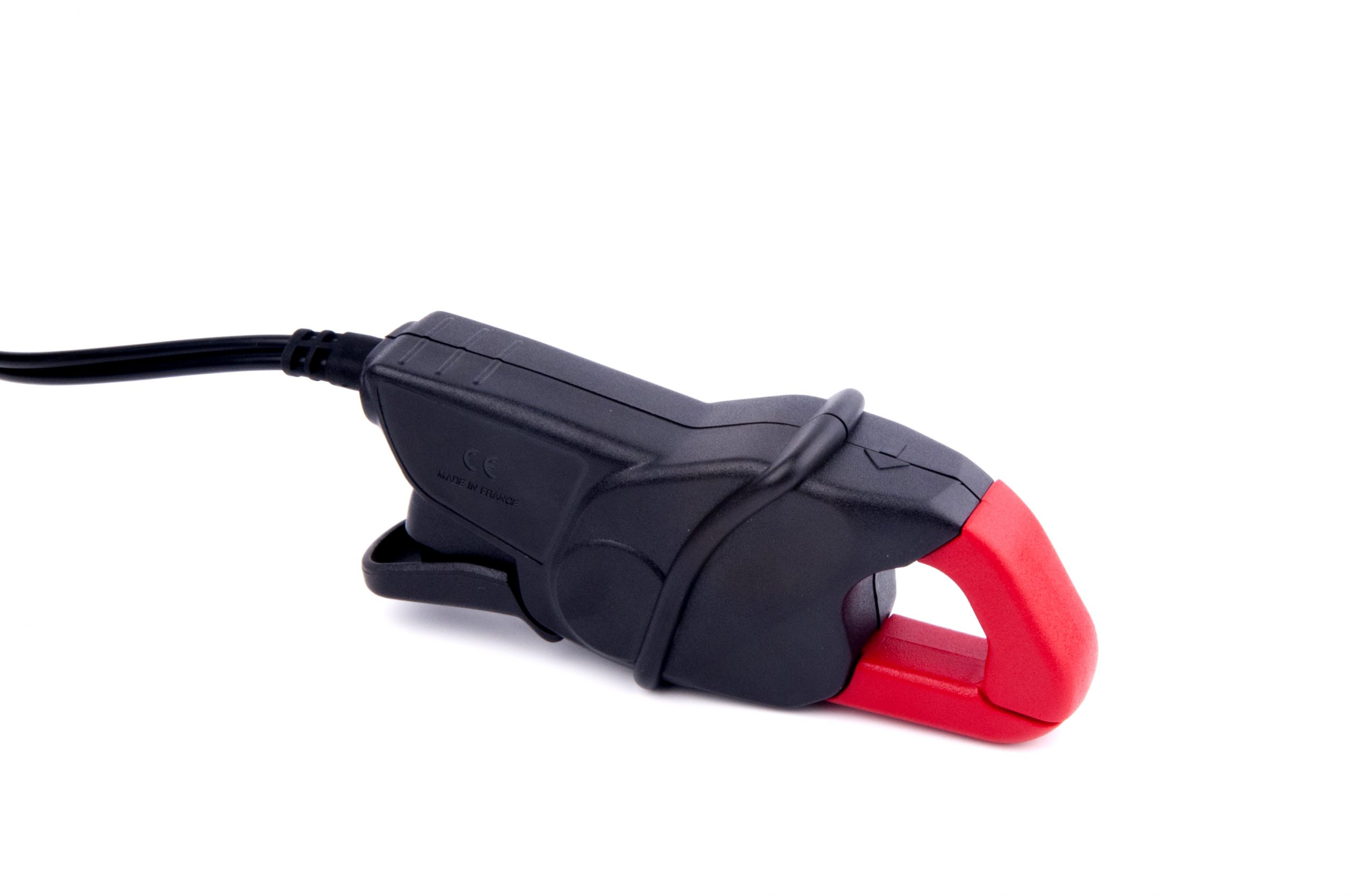

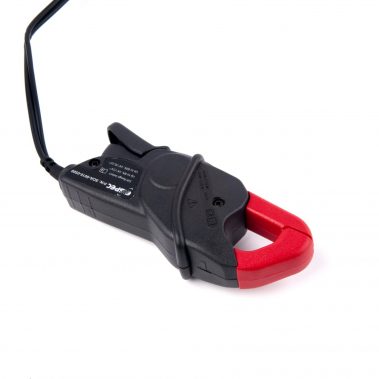

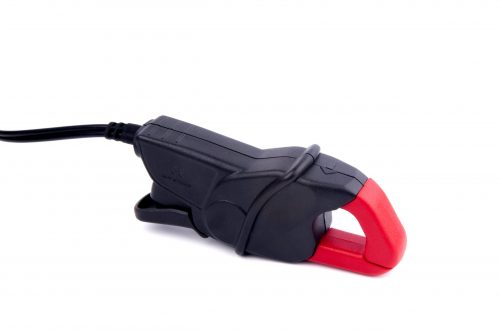

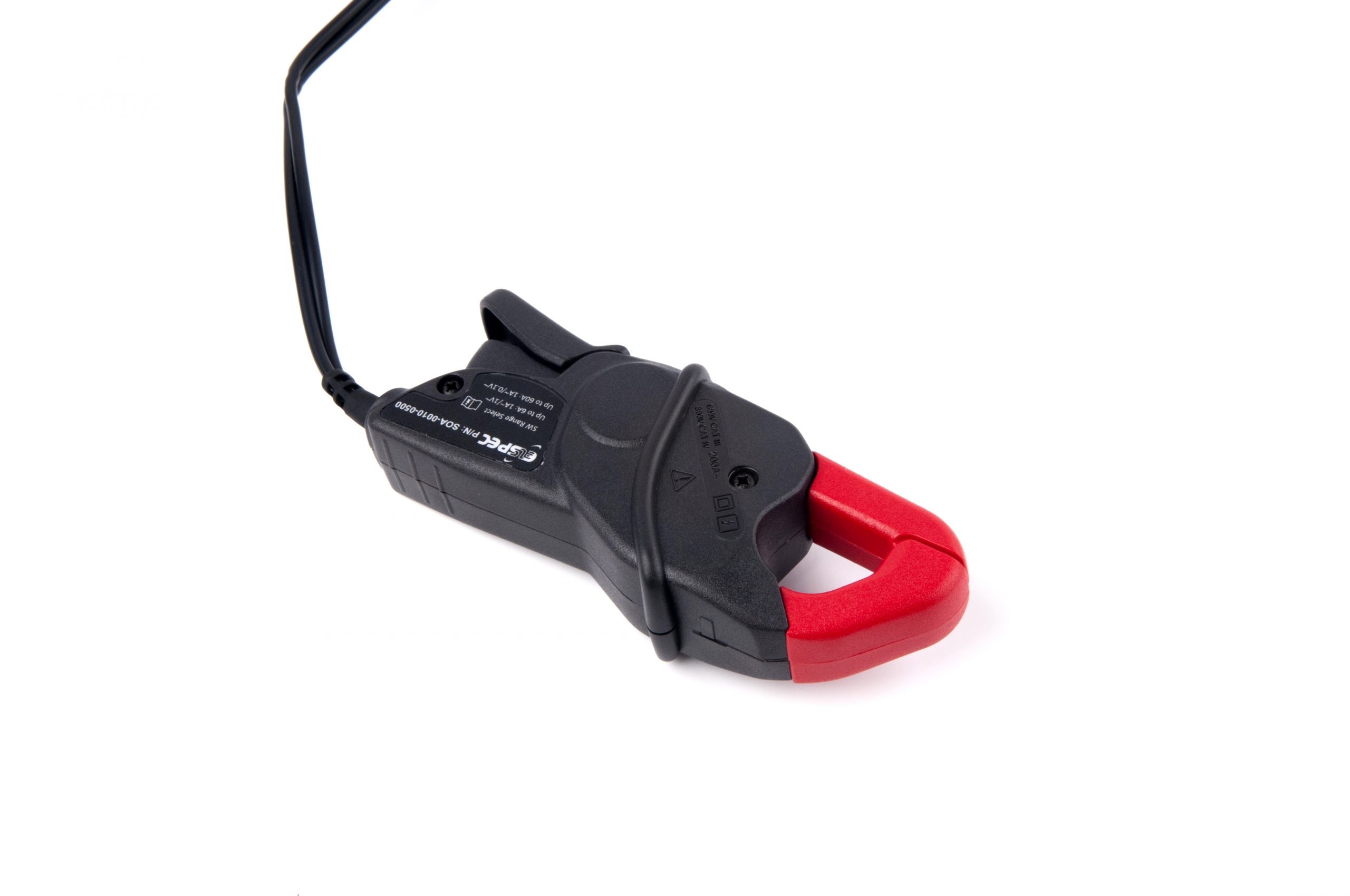

1 – 200A MINI CLAMP
| Ordering Information | SOA-0000-0500 |
| Measurement Range | up to 200A AC |
| Output Signal | 1,000m V/A, 10m V/A |
| Operating Temperature | – 20°C to + 60°C |
| Cable Length | 1.2m |

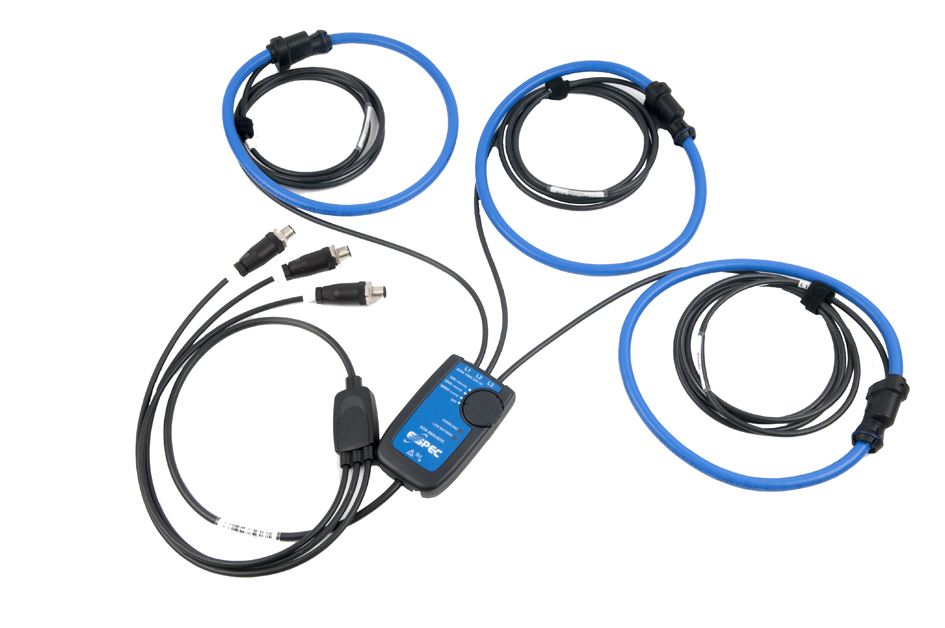

CUSTOM CLAMP 3-FLEXIBLE CURRENT PROBES
| Ordering Information | SOA-3003-0270 |
| Measurement Range | 30A/300A/3000A AC RMS |
| Operating Temperature | – 20°C to + 65°C |
| Probe Cable Length | 610mm (24”) |
| Probe Cable Diameter | 194mm (7.5”) |

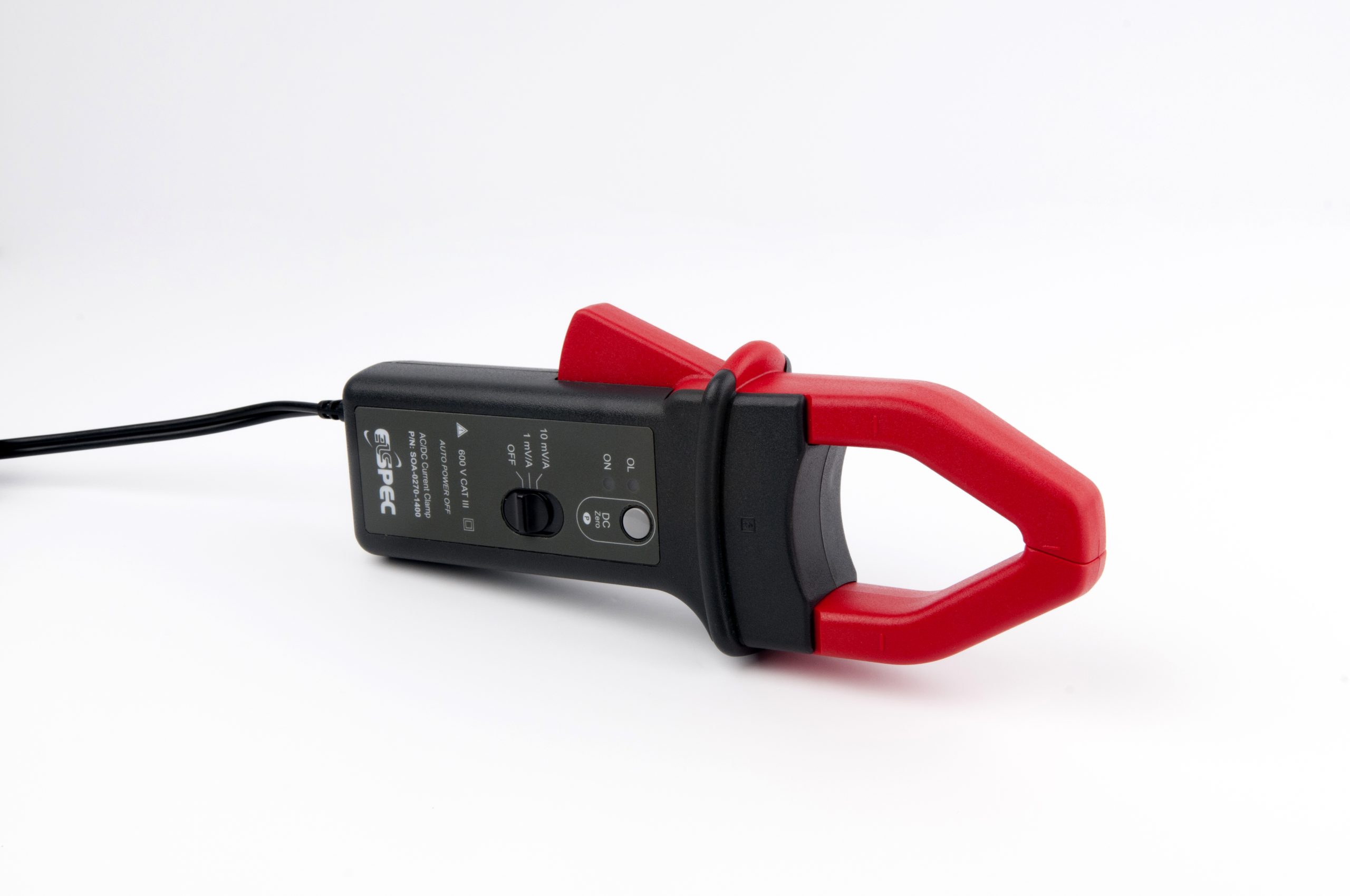

DC CURRENT CLAMP
| Ordering Information | SOA-0270-1400 |
| Measurement Range | 1,500A DC / 1,000A AC |
| Output Signal | 1m V/A, 10m V/A |
| Operating Temperature | – 10°C to + 55°C |
| Cable Length | 1.4m |

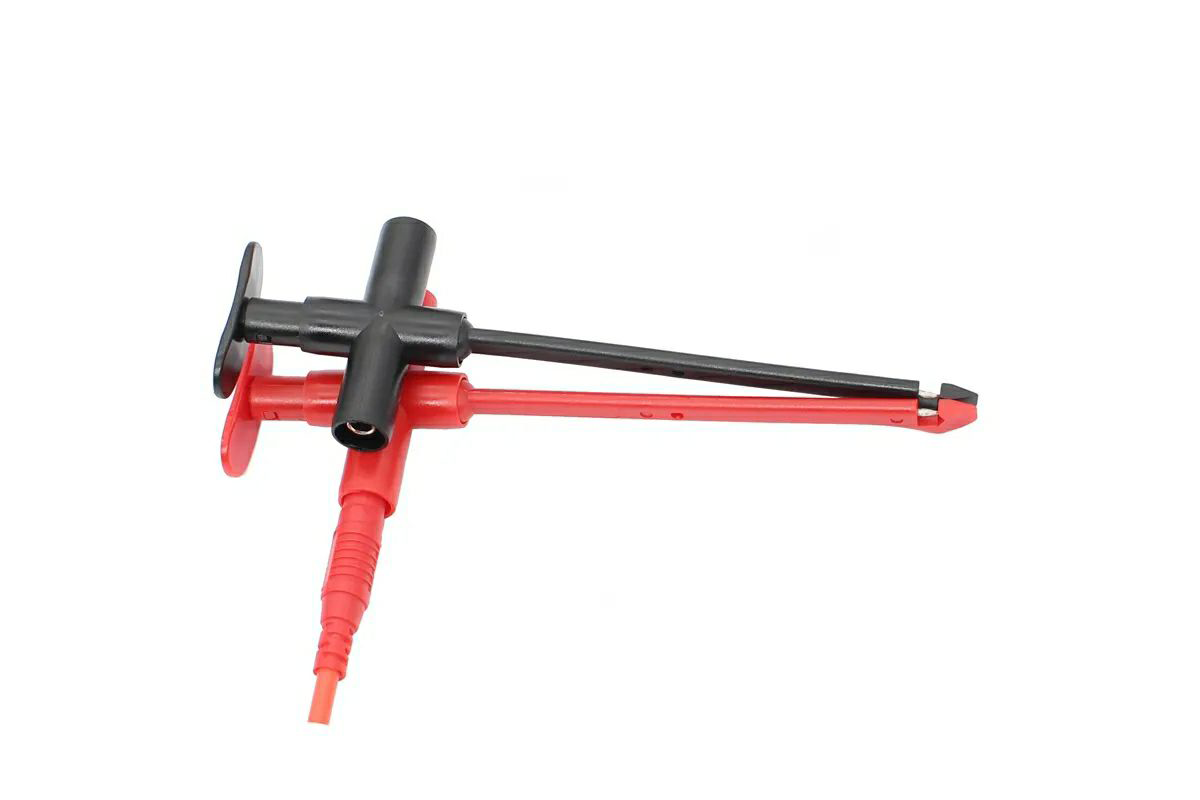

INSULATION PIERCING PROBES
Spring loaded press pin of cooper, which can grasp the conductor of max 4mm thickness
Compatible with all 4mm banana plug leads
Sheathed 4mm receptacle accepts shrouded banana plugs and unshrouded banana plugs

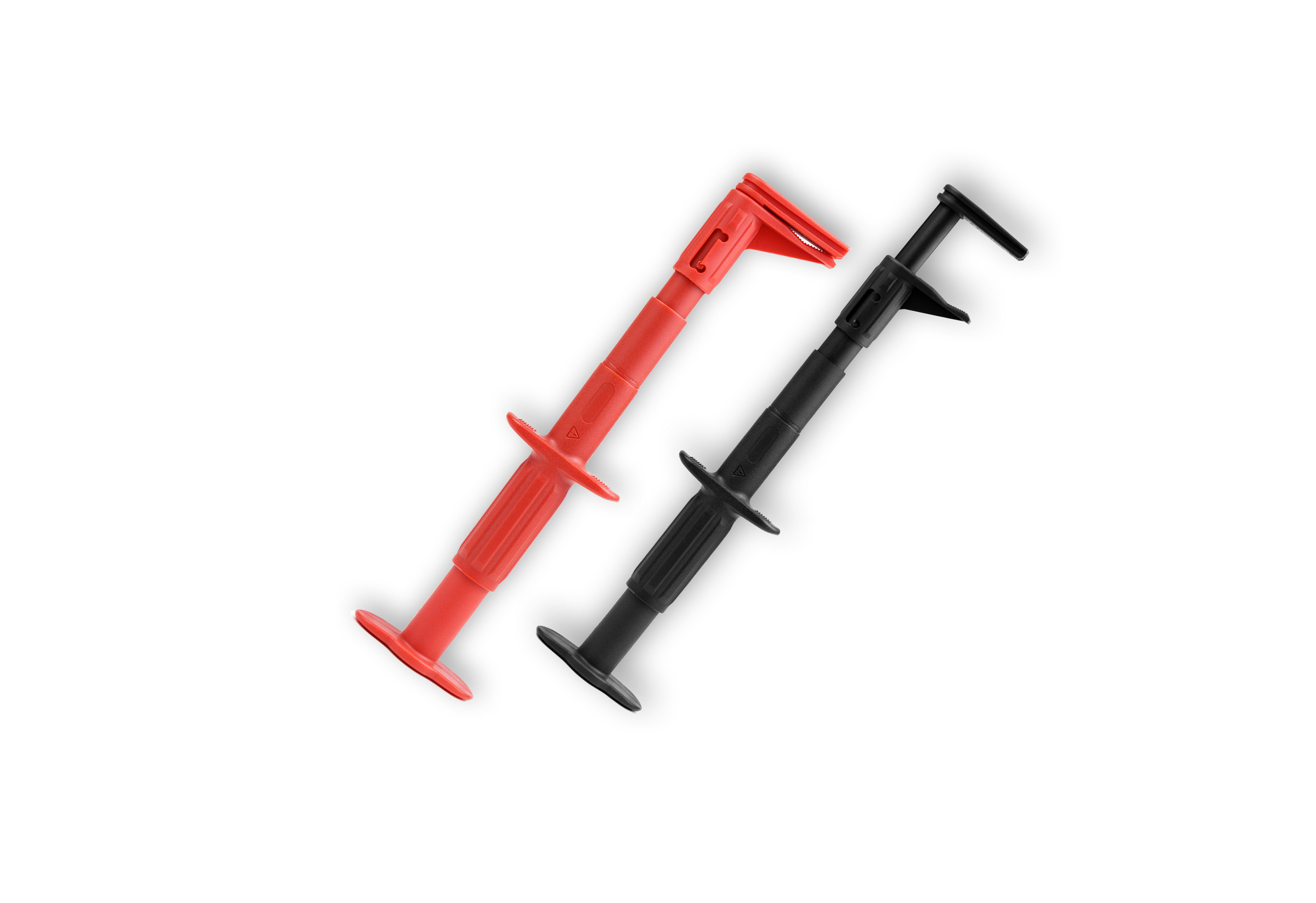

HEAVY DUTY BUS BAR CLIPS
Heavy Duty Bus Bar Clip Set of red and black connectors have a flat, right angle design for connecting to bus bars. The adjustable collar provides two ranges of jaw openings up to 30 mm. They are CAT III 1KV, 10 A . The over-molded surfaces and finger-hugging curves give the user a comfortable, reliable grip and improves steadiness in slippery hands.
